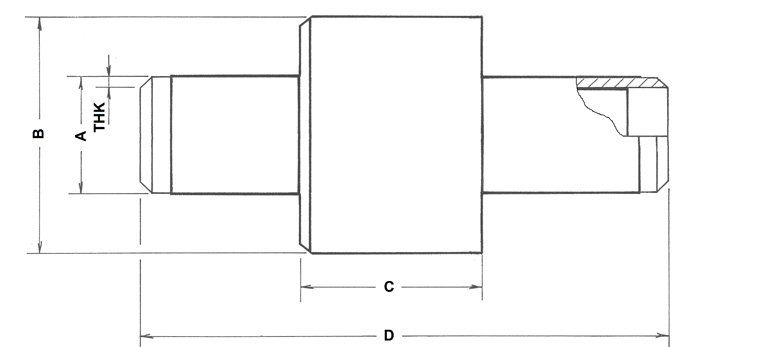

Standard Monolithic Insulating Joints

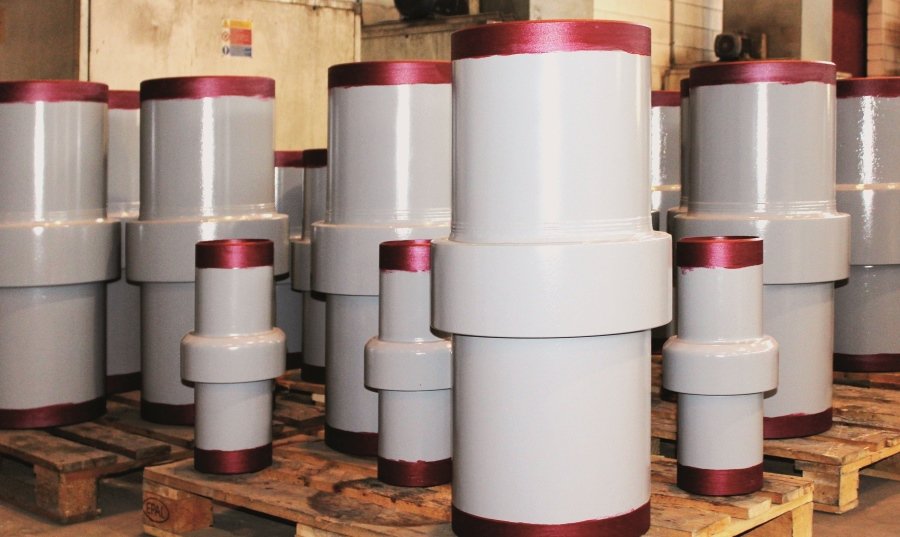

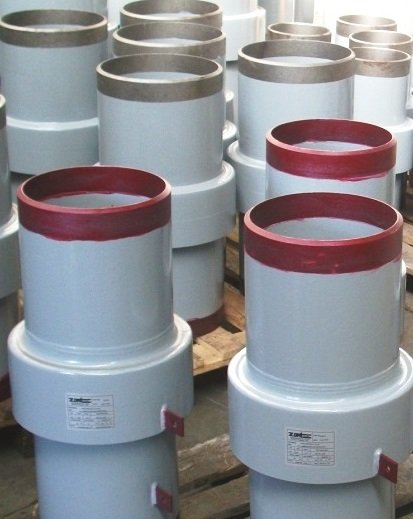

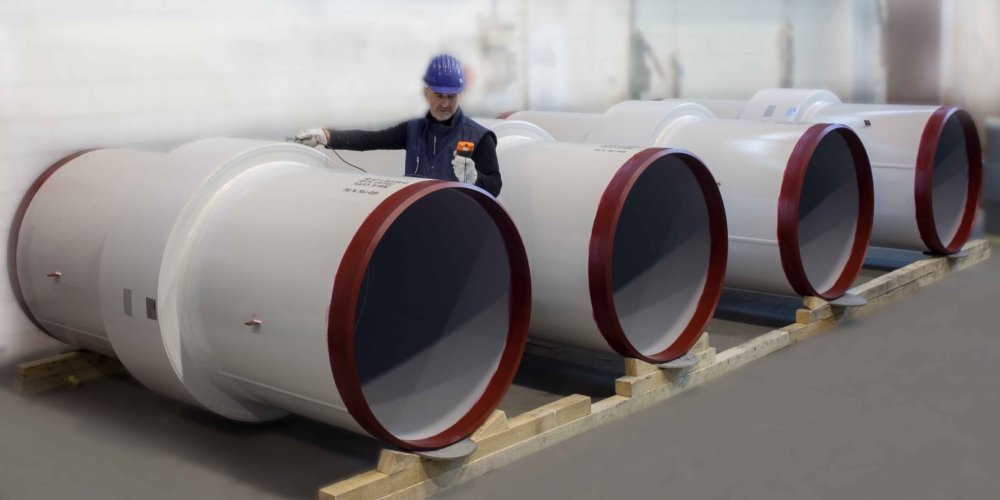

Monolithic Insulating Joints
for oil, gas and water pipelines OffShore & Onshore
Standard Production Range
Manufactured in compliance with the client’s specification
PRODUCTION RANGE
- SIZE - from ½" to 120" and over
- RATING - from ANSI 150 up to ANSI 2500 and over
TECHNICAL FEATURES (Zunt standard)
- Design Factor - 0.6
- Temperature range - -10°C / 70°C
- Hydrotest pressure - 1.5 times the Design Pressure
- Dielectric Strength Test - > 3 kV for 1 min. – 50 Hz AC
- Electrical Resistance Test - in dry conditions > 25 MOhm – 1000 V DC
- Coating / Lining - epoxy resin
- N.D.E. - MPI, UT, X-Rays, Dye Penetrant on welds (as applicable)
